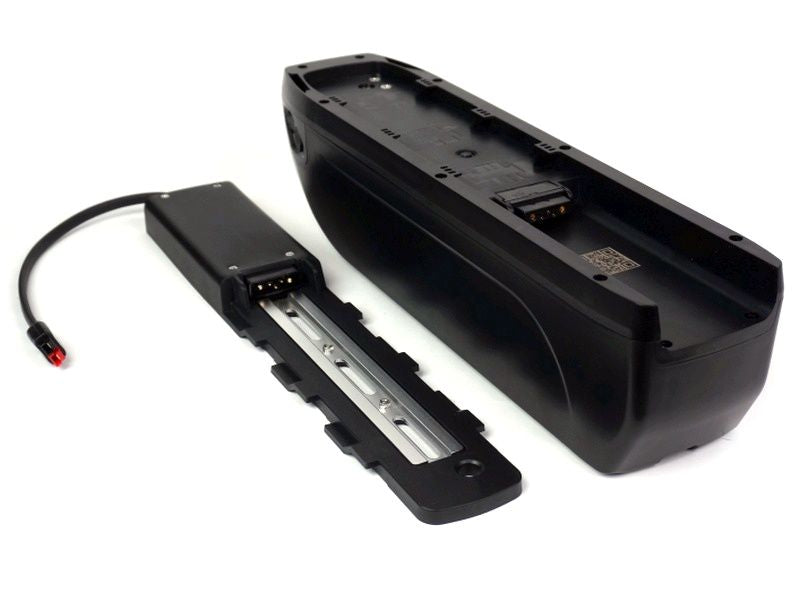

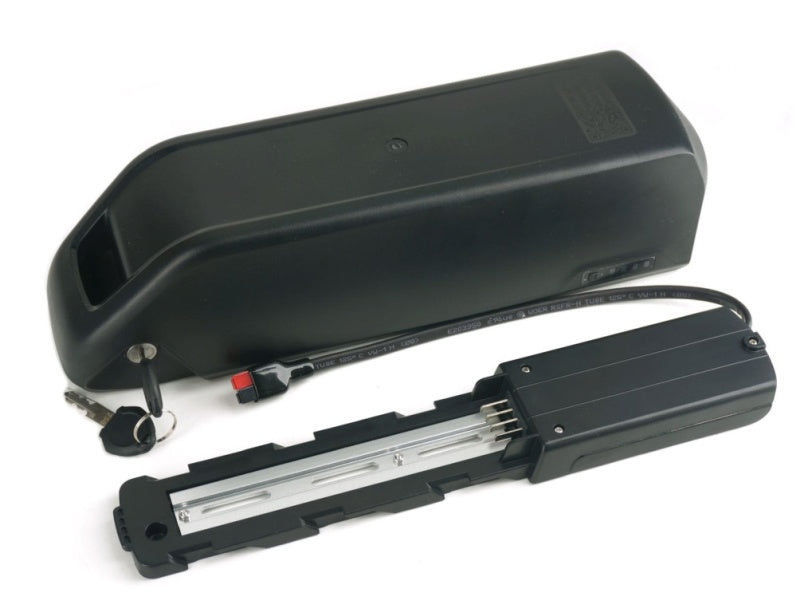

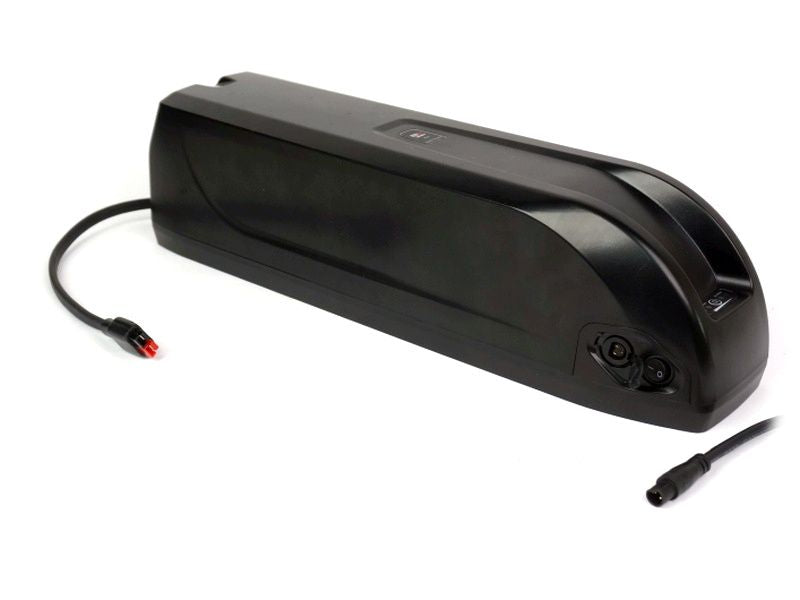

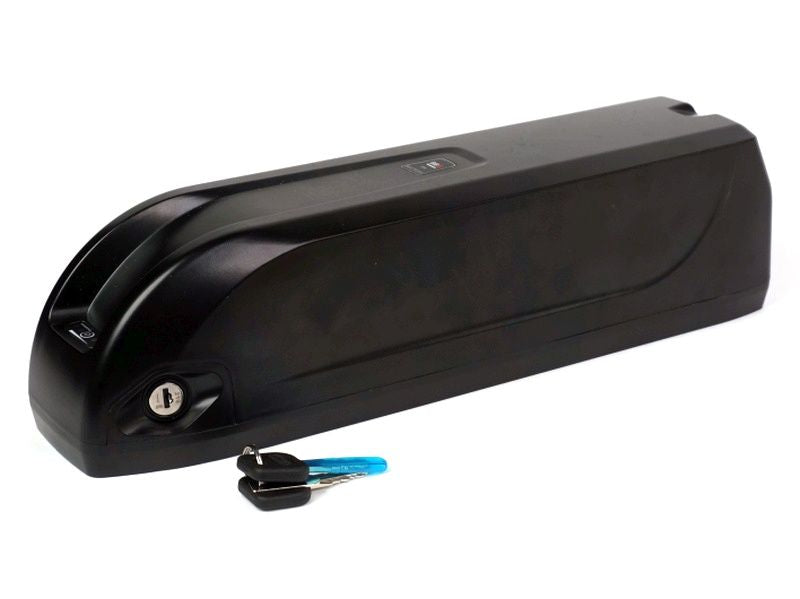

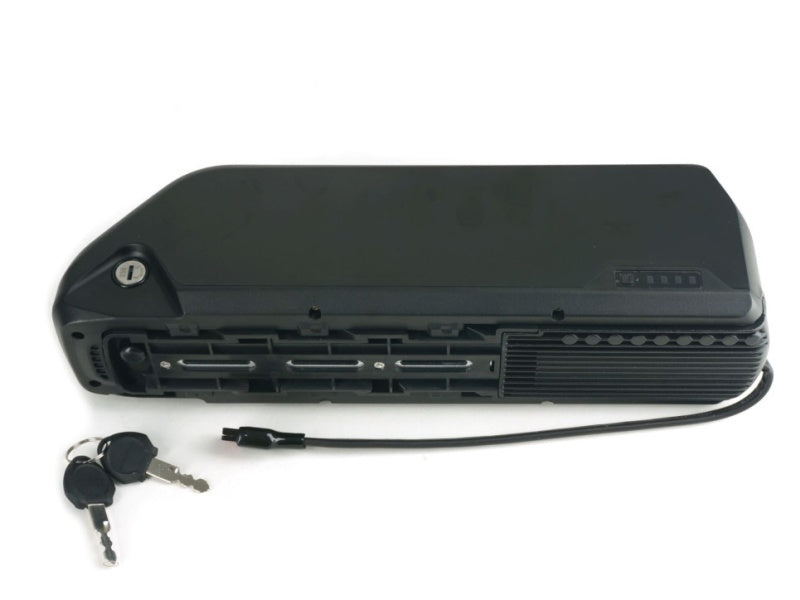

36V 14.5Ah Downtube Battery
36V 14.5Ah Downtube Battery
Regular price
$400.00 USD
Sale price
$400.00 USD
Regular price
$0.00 USD
Shipping calculated at checkout.
Hurry up, only 8 items left in stock.
A 36V downtube battery with 14.5Ah (~520Wh) of capacity in a rigid case, individually bench-tested at Grin.
Specs:
- 30 Panasonic 21700A cells · 40A continuous BMS
- Downtube enclosure · key switch + ON/OFF rocker
- Anderson Powerpole connectors
- Push-button 4-LED charge indicator
- Mounts to standard waterbottle eyelets

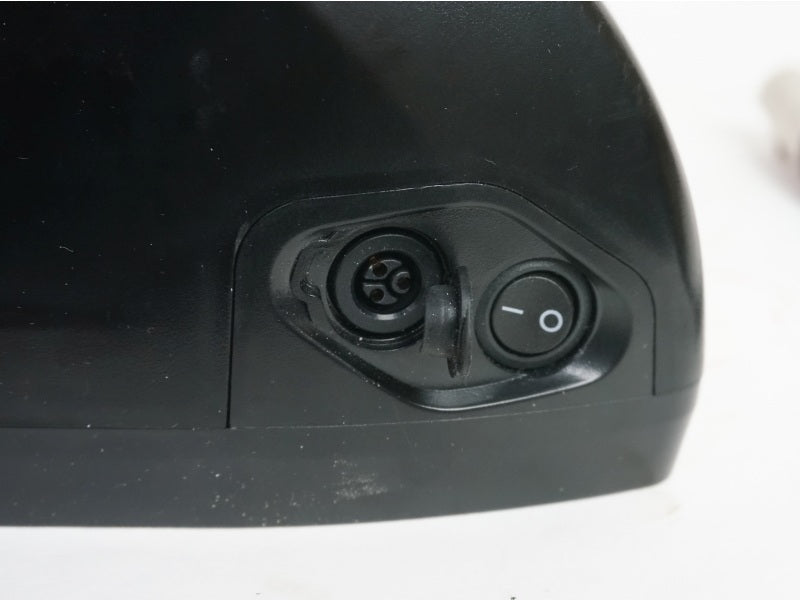

- Charges up to 8A via Mini ST 3-pin port
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Nominal voltage | 36 V (10S) |
| Capacity | 14.5 Ah |
| Energy | 522 Wh |
| Max continuous current | 30 A |
| Cell chemistry | Samsung INR21700-50G 10S x 3P |
| Mount | Frame Mount |
| Dimensions | 365 × 100 × 105 mm |
| Weight | 3.15 kg |
Connectors
AndersonMain power
DT 4pinSpadeBalance / BMS
ST3Charge port
Technical details
| Full-charge voltage | 42 V |
Downloads
Datasheets & Brochures
