36V 19Ah Downtube Battery
36V 19Ah Downtube Battery
Regular price
$555.00 USD
Sale price
$555.00 USD
Regular price
$0.00 USD
Shipping calculated at checkout.
In stock

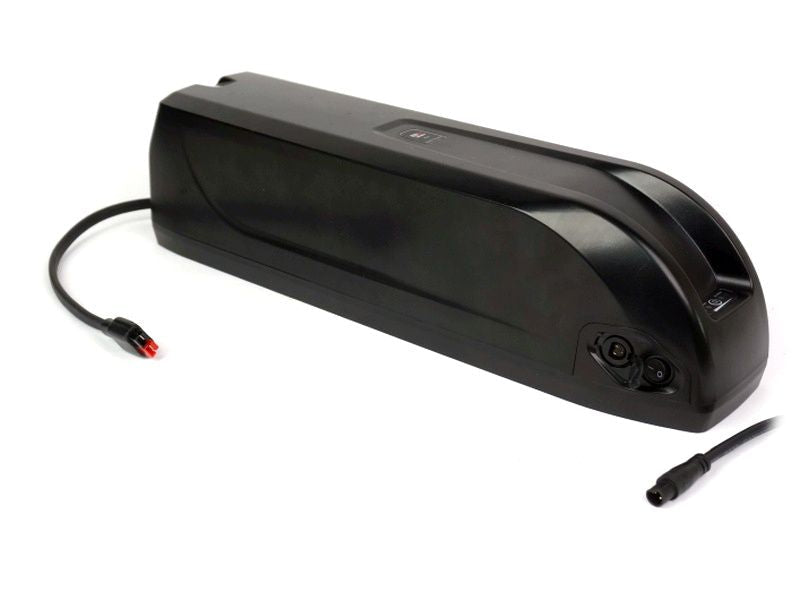

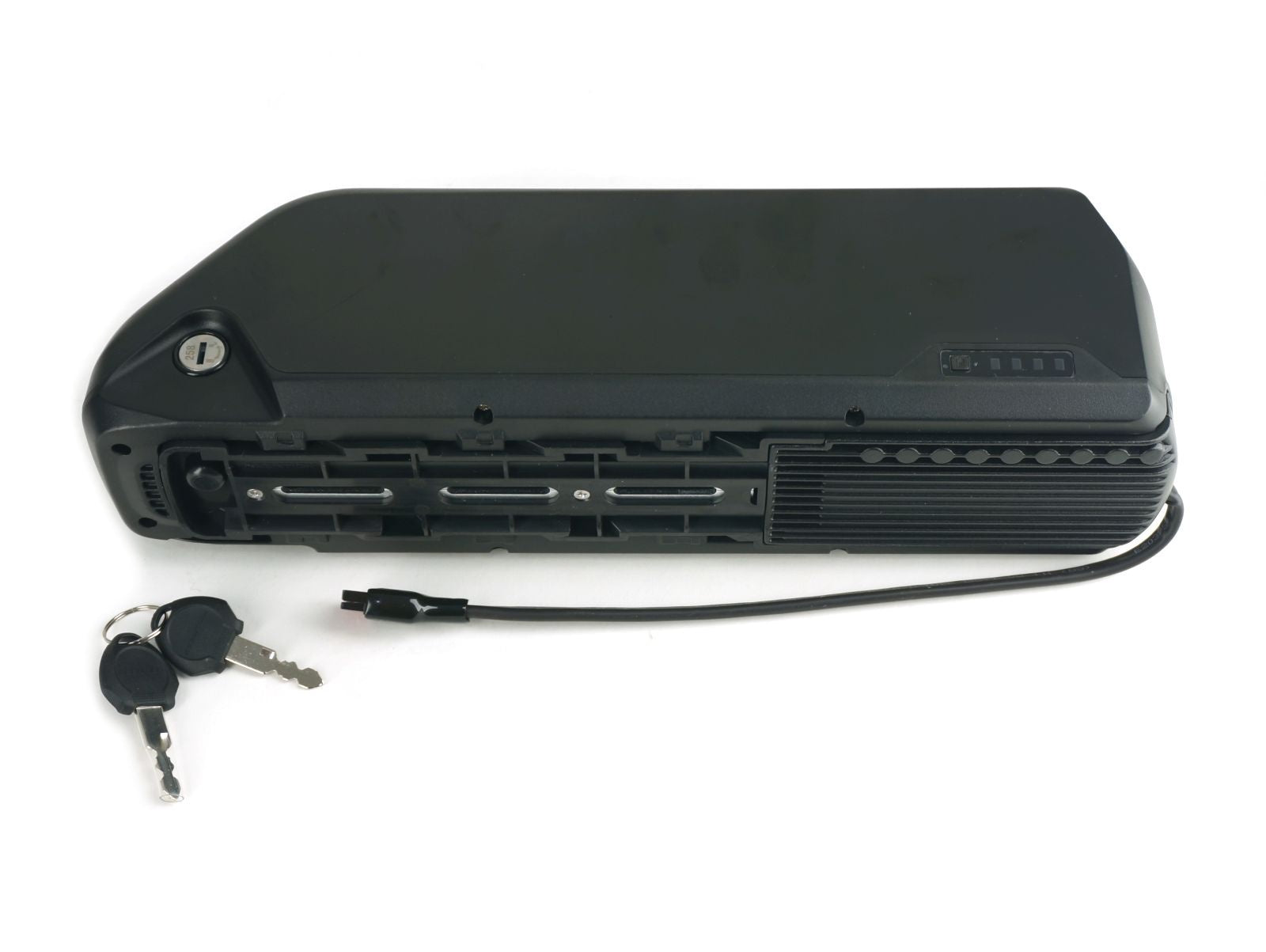

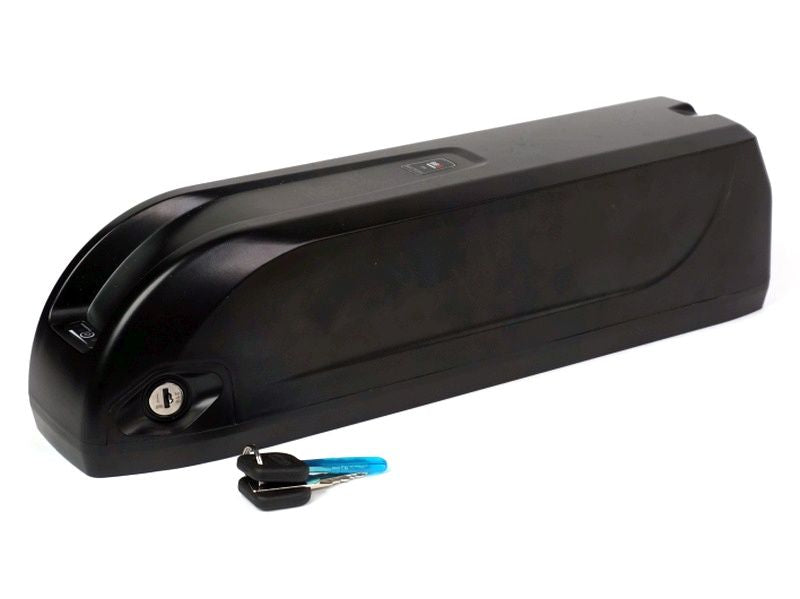

A 36V downtube battery with 19.3Ah (~695Wh) of capacity for long-range riding, individually bench-tested at Grin before it ships.
Specs:
- 40 Samsung INR21700-50G cells · 40A continuous BMS

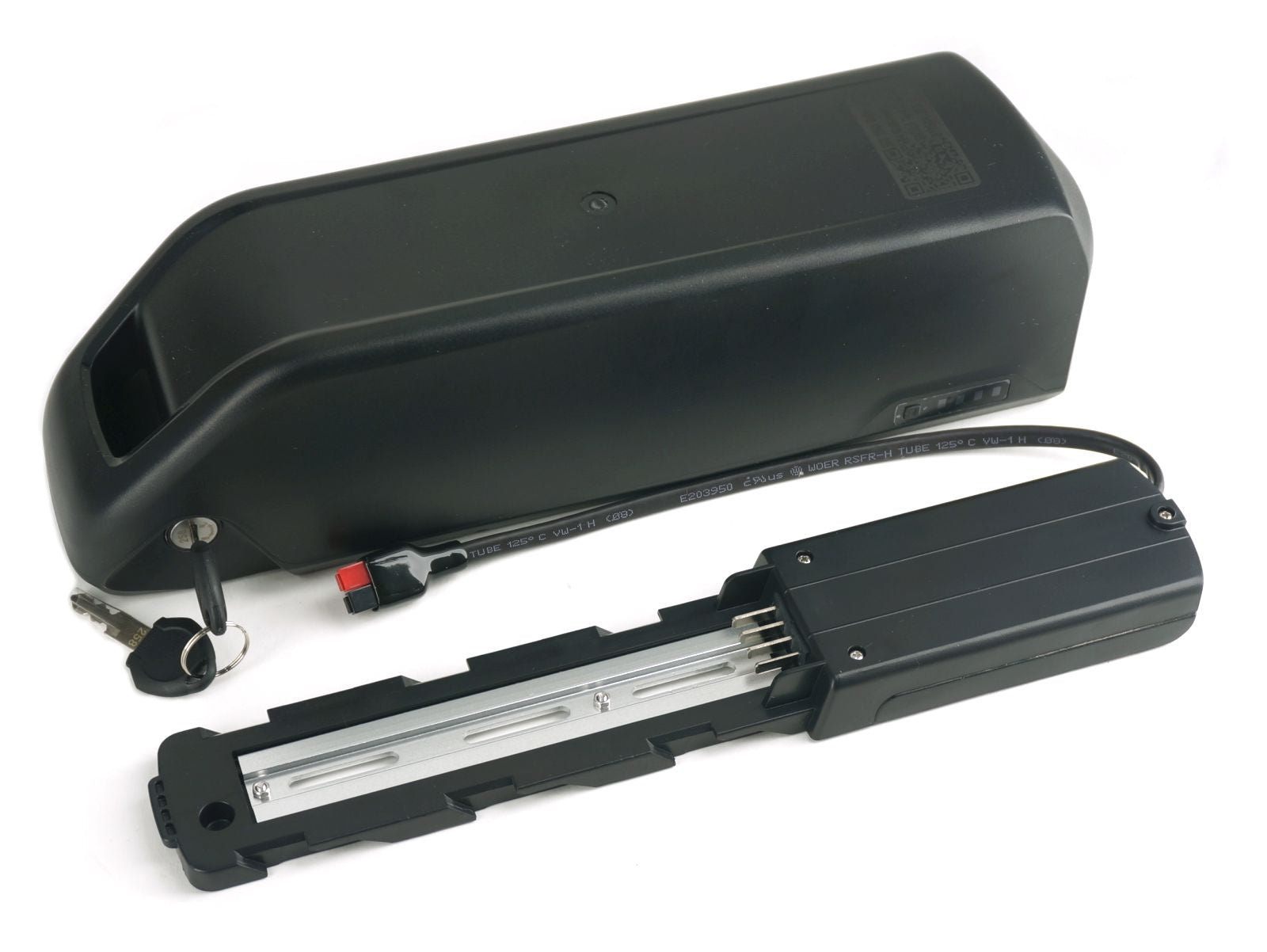

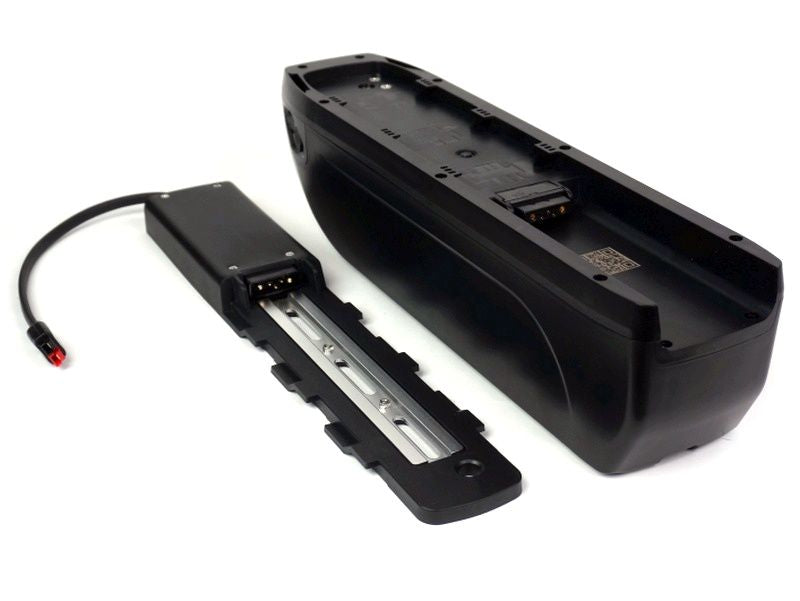

- Reention downtube case · mechanical key switch + ON/OFF rocker
- Anderson Powerpole power connectors
- Push-button 4-LED charge indicator
- Mounts to standard waterbottle eyelets

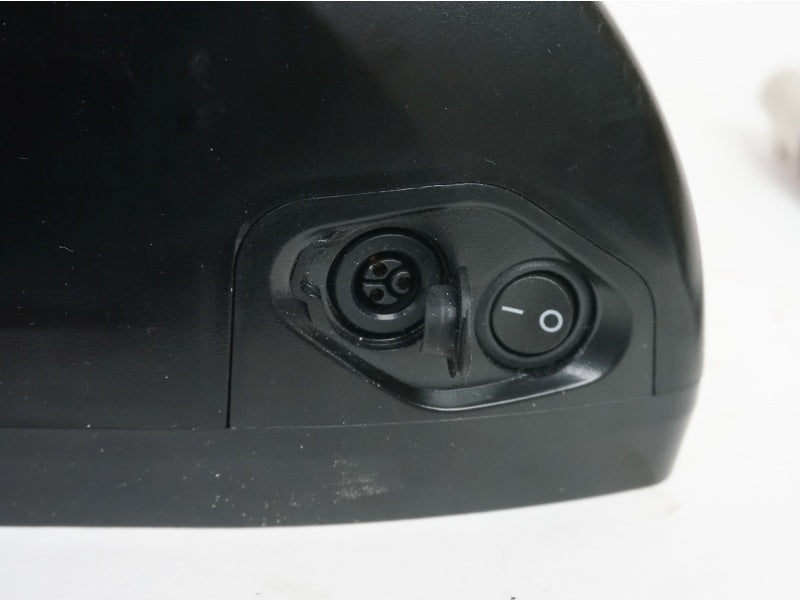

- Charges up to 8A via Mini ST 3-pin port (XLR-ST3 adapter not included)
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Nominal voltage | 36 V (10S) |
| Capacity | 19.25 Ah |
| Energy | 693 Wh |
| Max continuous current | 30 A |
| Cell chemistry | Samsung INR21700-50G 10S x 4P |
| Mount | Frame Mount |
| Dimensions | 365 × 95 × 100 mm |
| Weight | 4.02 kg |
Connectors
AndersonMain power
DT 4pinSpadeBalance / BMS
ST3Charge port
Technical details
| Full-charge voltage | 42 V |
