36V 24Ah Downtube Battery
36V 24Ah Downtube Battery
Regular price
$590.00 USD
Sale price
$590.00 USD
Regular price
$0.00 USD
Shipping calculated at checkout.
Available in stock (16)

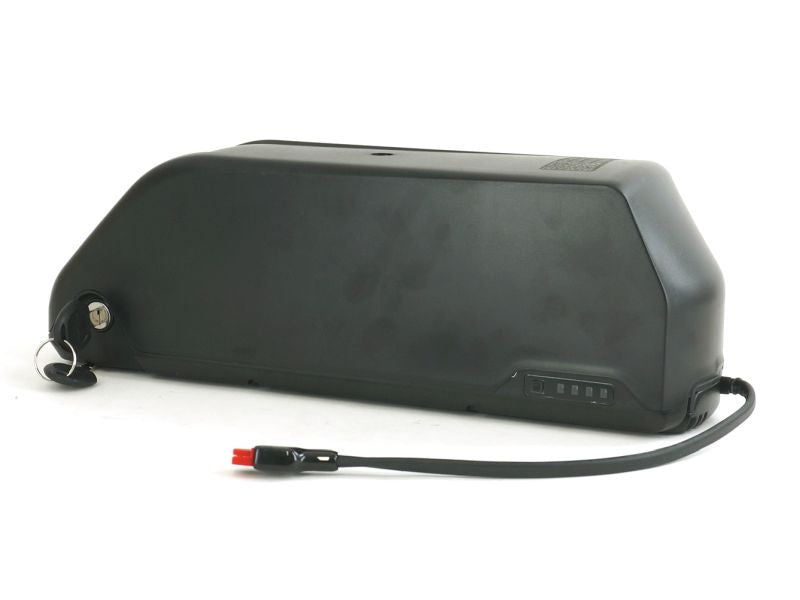

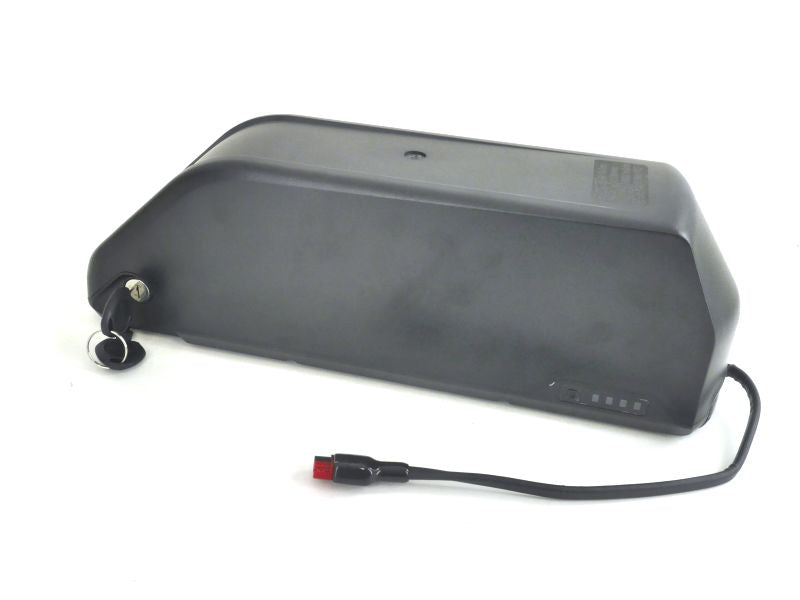

A high-capacity 36V downtube battery — 24Ah (~865Wh) for maximum range, in a rigid Reention case, individually bench-tested at Grin.
Specs:
- 50 Samsung INR21700-50G cells · 40A continuous BMS

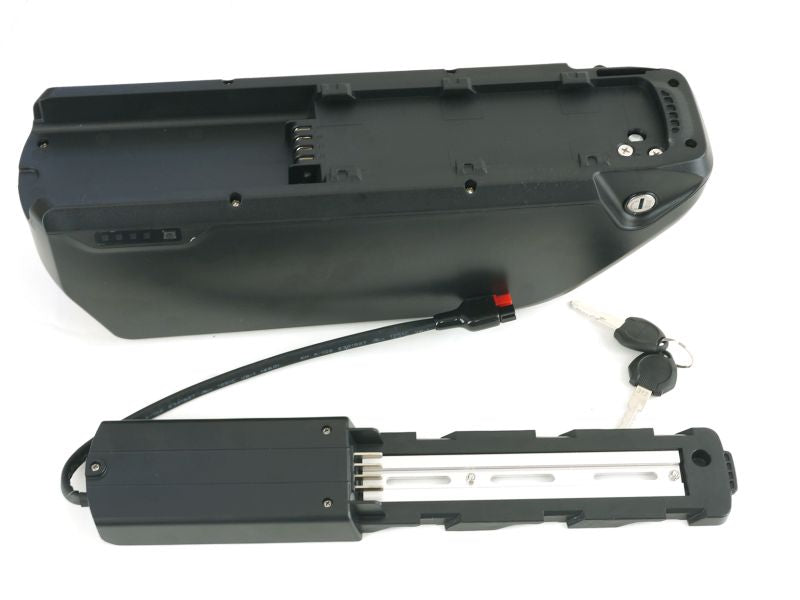

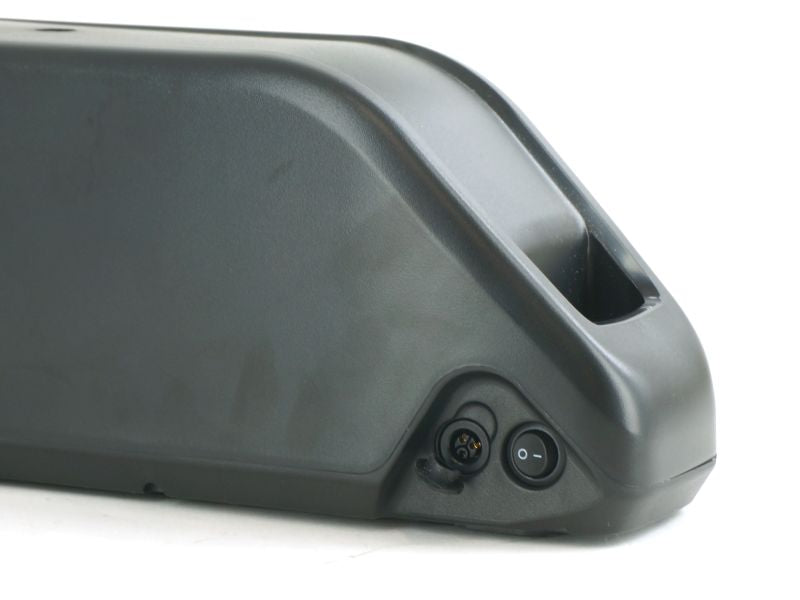

- Reention downtube case · key switch + ON/OFF rocker
- Anderson Powerpole connectors
- Push-button 4-LED charge indicator

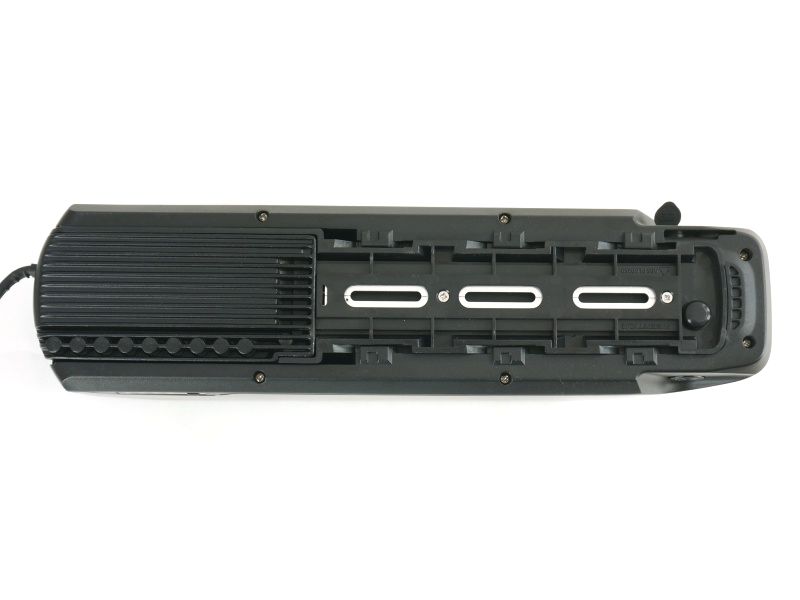

- Mounts to standard waterbottle eyelets
- Charges up to 8A via Mini ST 3-pin port
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Nominal voltage | 36 V (10S) |
| Capacity | 24 Ah |
| Energy | 864 Wh |
| Max continuous current | 40 A |
| Cell chemistry | Samsung INR21700-50G 10S x 5P |
| Mount | Frame Mount · Rear Rack |
| Dimensions | 365 × 95 × 124 mm |
| Weight | 4.8 kg |
Connectors
AndersonMain power
ST3Charge port
Technical details
| Internal resistance | 0.8 Ω |
| Full-charge voltage | 42 V |
Downloads
Datasheets & Brochures
