V6 Baserunner_L10 Stand Alone Controller
Regular price
$290.00 USD
Sale price
Regular price
Shipping calculated at checkout.
Available in stock (13)

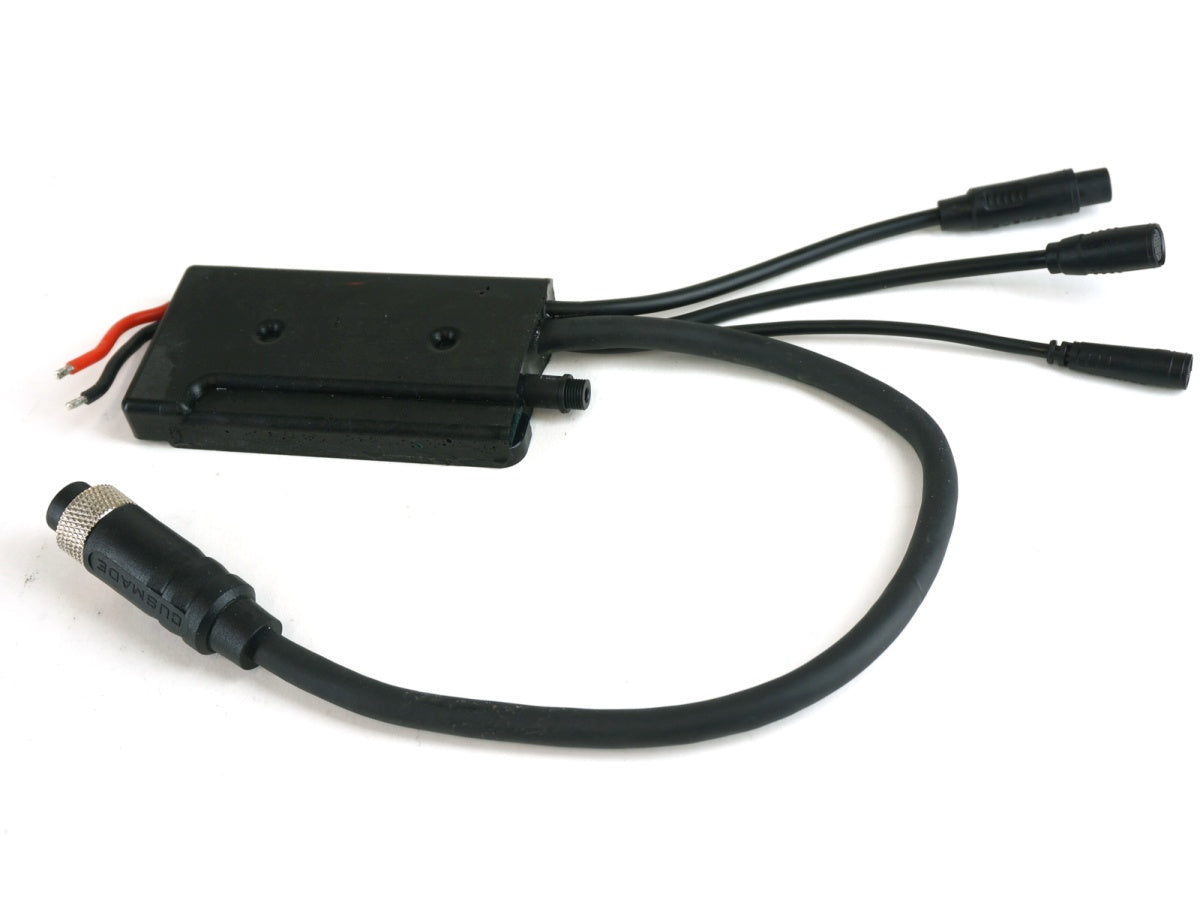

The Baserunner_L10 Stand-Alone is the same compact, high-performance motor controller as our standard Baserunner, but built for mounting out in the open: slightly wider, fully epoxy-potted for better weather protection, and it does not fit inside downtube battery cradles.
Specs:
- Up to 14s (58V) battery packs · up to 80A peak phase current (L1019 waterproof plug)
- 8-pin HiGo (CA3-WP), 9-pin Cusmade Mains, 6-pin HiGo MiniB (PAS/torque)
- Long battery cable exits the back with the other cables
- Needs computer setup (USB→TTL cable) to pair with your motor
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Max battery current | 35 A |
| Max phase current | 80 A |
| Battery voltage range | 20–60 V |
| Low-voltage cutoff | Programmable |
| Dimensions | 90 × 63 × 15 mm |
| Weight | 0.18 kg |
Connectors & cable lengths
- L1019 Motor Cable · 38 cm
- 6-Pin HiGo Cable · 16.5 cm
- WP 8-Pin Cable · 15.5 cm
- Main 9-Pin Cable · 16 cm
Technical details
| MOSFETs | 6 × 4 mΩ |
