Phaserunner V6 MT - Stainless Silver Shell
Phaserunner V6 MT - Stainless Silver Shell
Regular price
$295.00 USD
Sale price
$295.00 USD
Regular price
$0.00 USD
Shipping calculated at checkout.
Hurry up, only 7 items left in stock.

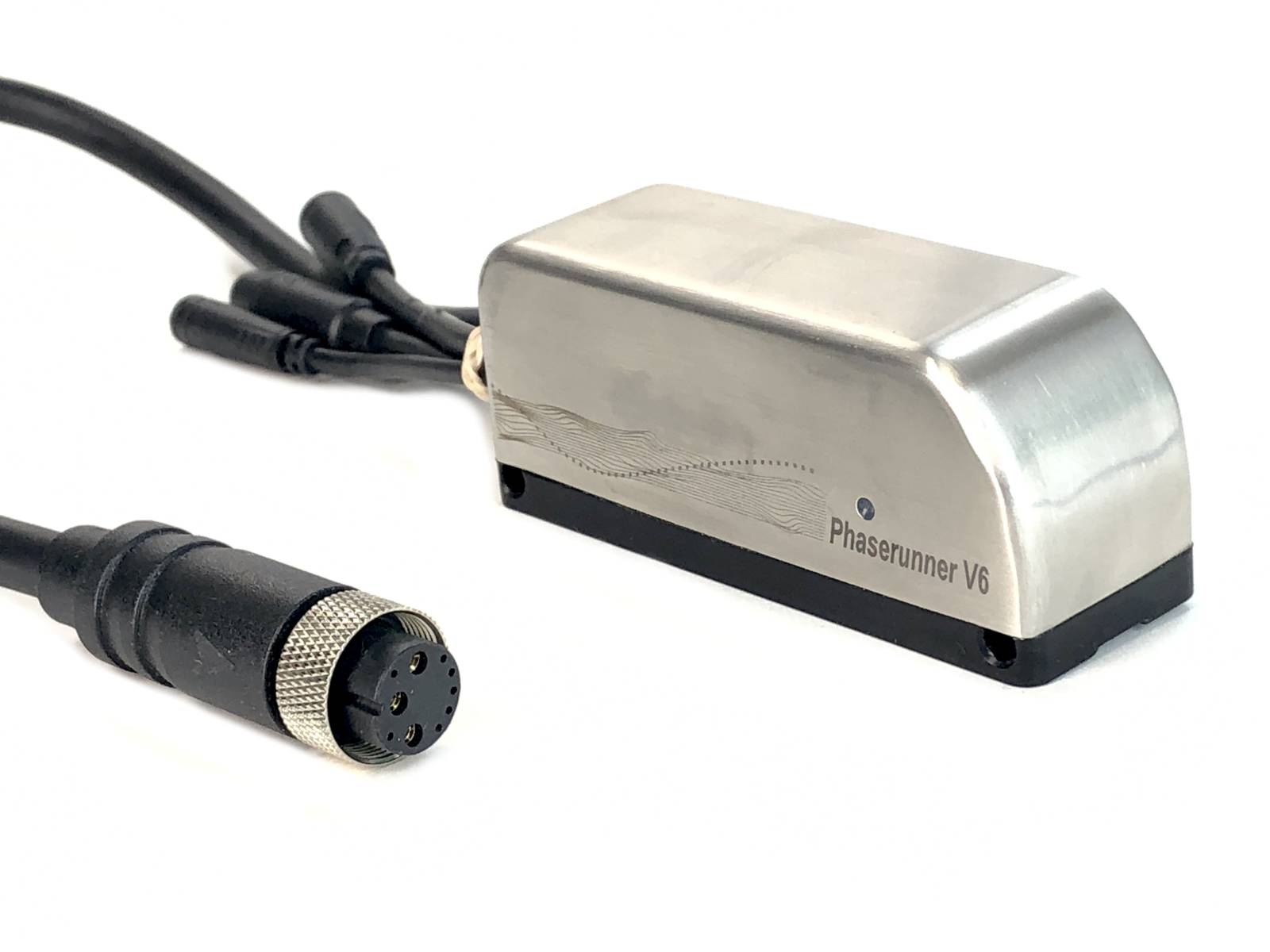

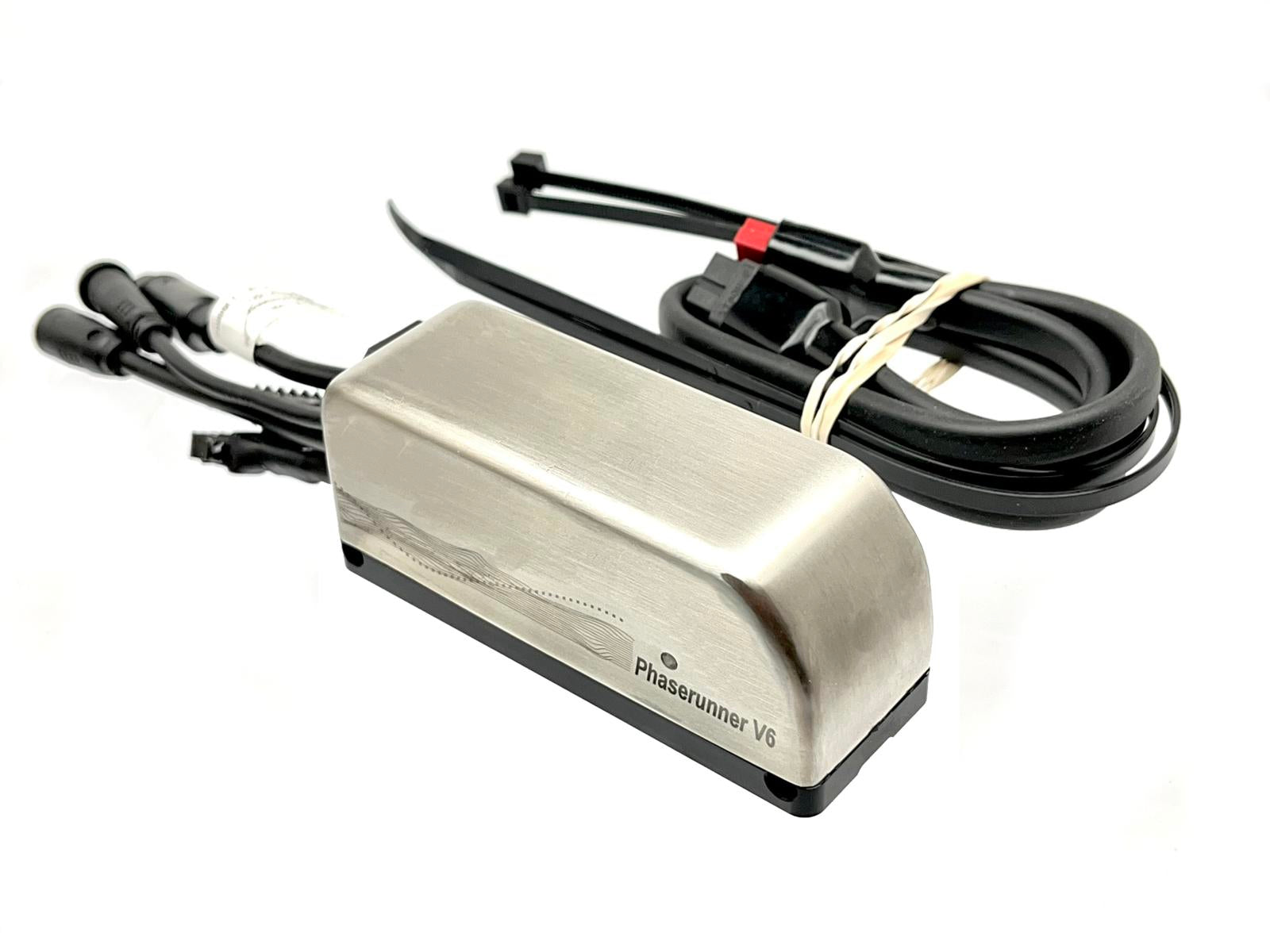

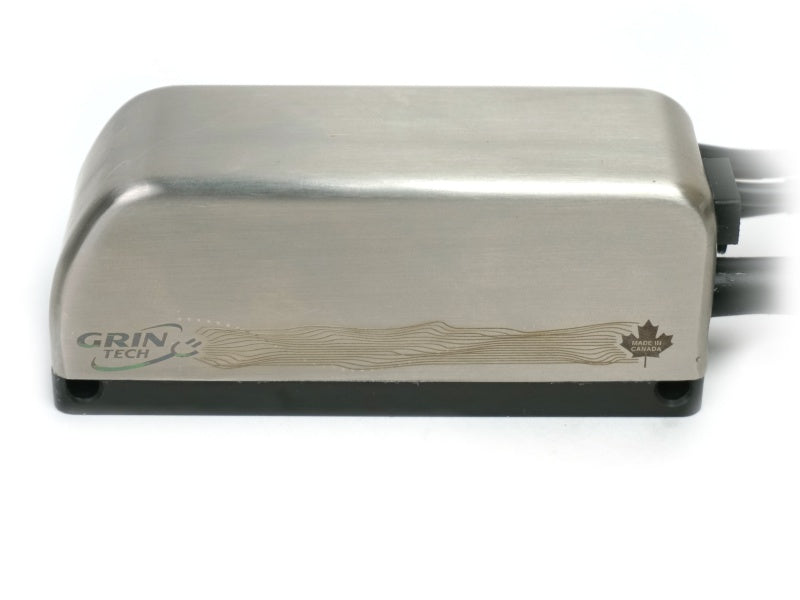

The Phaserunner V6 MT is Grin's compact, high-performance motor controller, here in a stainless-steel shell, delivering notably smoother, quieter power than basic ebike controllers. The MT version puts an MT60 three-phase connector and JST plugs (hall sensors, temp/signal) right at the controller, and pairs with a separate motor adapter harness to reach your motor — stock adapters in Anderson, Z910, Spade, and L1019, with more being added.
Specs:
- 90V max; 90A peak phase current (~45A continuous)
- Stainless silver shell (also in black metal)
- MT60 three-phase + JST hall/temp plugs; needs a separate motor adapter harness
- 8-pin waterproof CA plug (older CA3-DP/DPS need the WP8→JST adapter)

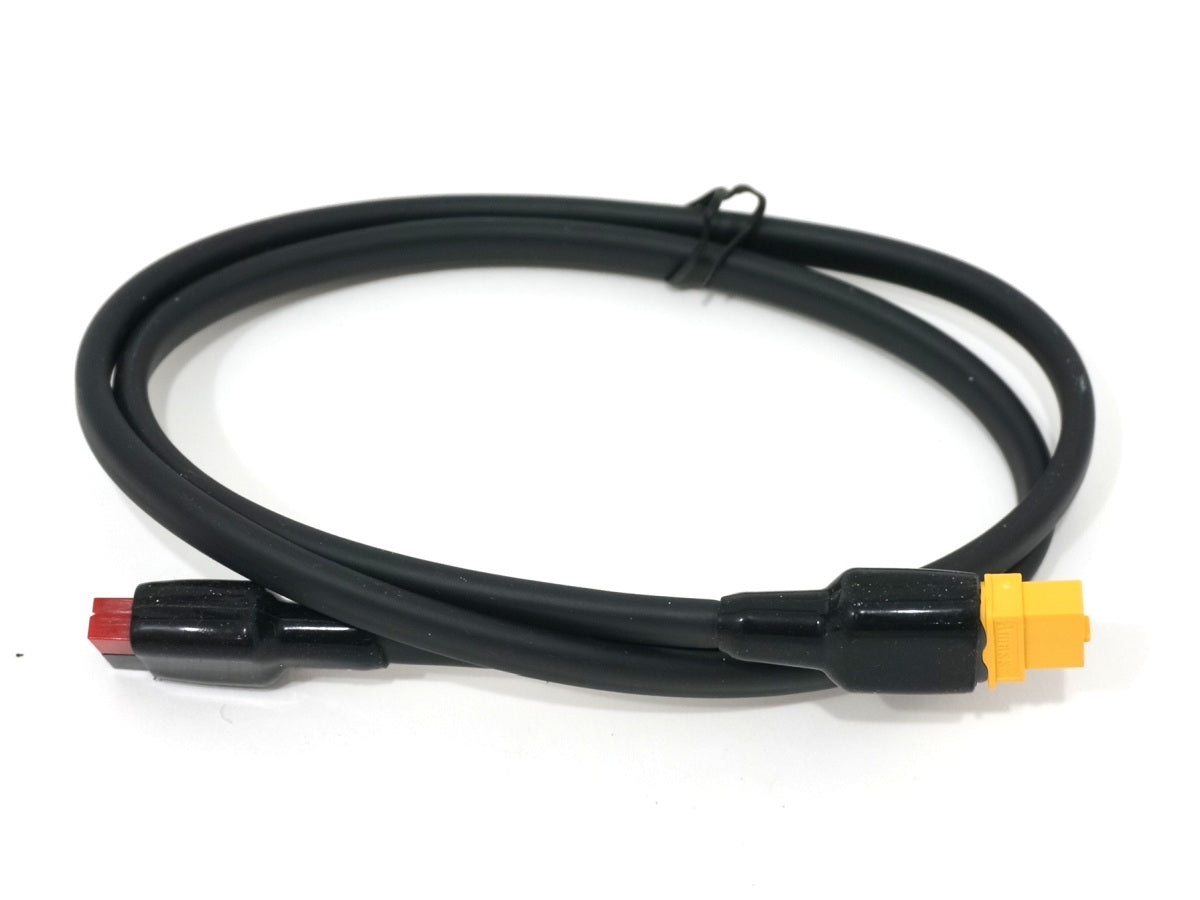

- 9-pin Mains; 6-pin PAS; XT60M power in with an Anderson battery cable
- Needs computer setup (USB→TTL cable) to pair with your motor
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Max battery current | 40 A |
| Max phase current | 90 A |
| Battery voltage range | 30–90 V |
| Low-voltage cutoff | Programmable |
| Dimensions | 99 × 40 × 34 mm |
| Weight | 0.26 kg |
Connectors & cable lengths
- MT60 Motor Phase · cable sold separately
- 6-Pin HiGo Cable · 10 cm
- WP 8-Pin Cable · 10 cm
- Main 9-Pin Cable · 10 cm
Technical details
| MOSFETs | 6 × 100V, 3 mΩ |
