Grin Max45 All-Axle Rear Hub Motor for 24″+ Wheels (Fatbike)
Grin Max45 All-Axle Rear Hub Motor for 24″+ Wheels (Fatbike)
Regular price
$895.00 USD
Sale price
$895.00 USD
Regular price
$0.00 USD
Shipping calculated at checkout.
Hurry up, only 4 items left in stock.
A Grin Max45 All-Axle rear hub motor for fatbikes, suited to 24″+ wheels (7.2 rpm/V).
Specs:
- The higher-power fatbike version, with a wider hub that laces easily into fat rims
- Built-in pedal-assist torque sensor, so you don't need a separate bottom-bracket sensor

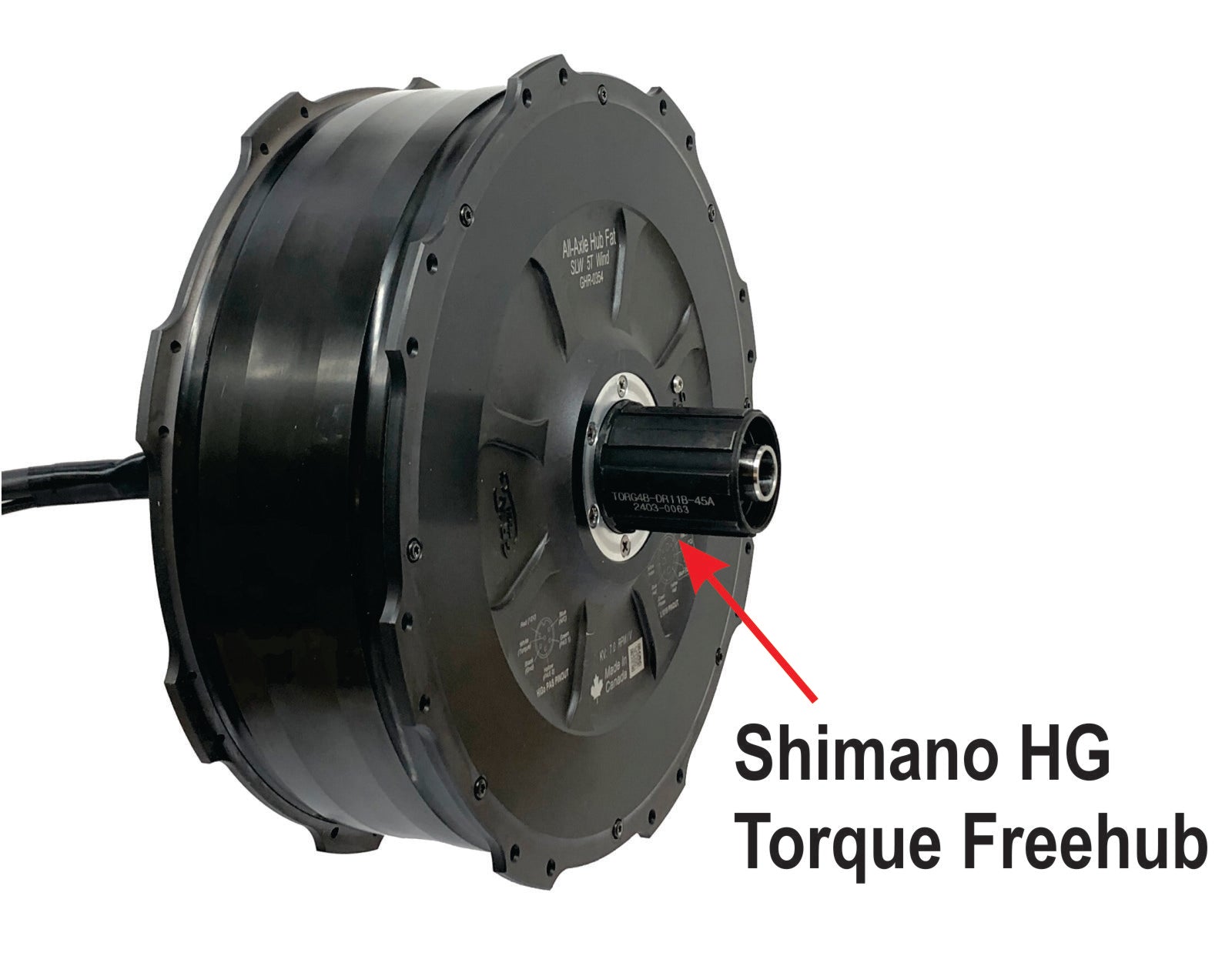

- Fits Shimano HG cassettes
- Fits quick-release and thru-axle fatbike dropouts
- Built-in temperature sensor guards against overheating
See the Grin All-Axle info page for details.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Motor type | Direct Drive |
| Position | Rear |
| Winding speed (Kv) | 7.2 rpm/V |
| Spoke holes | 32H |
| Weight | 6.1 kg |

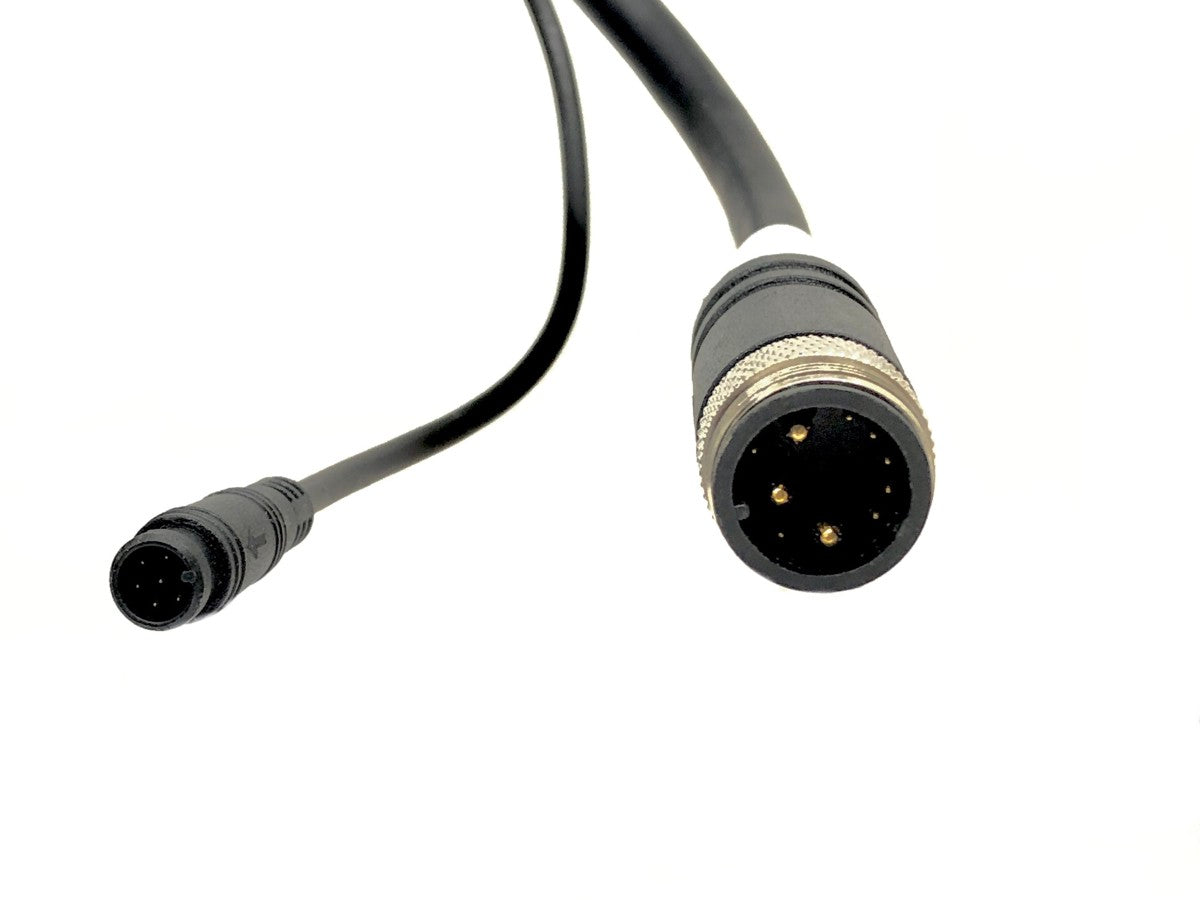

Connectors
L1019Motor phase
Technical details
| Thermistor | 10K NTC, Beta ~3450 |
| Speedo poles (Cycle Analyst) | 23 |
| Flange spoke diameter | 214 mm |
| Spoke-calculator hub ID | GR_45 |
Downloads
CAD & 3D Files
